About this shader
A soft, radially symmetric glow that gently breathes in and out from the center. Great for sun orbs, magic circles, or ambient light sources.
Apply it to a TextureRect or ColorRect sized to your desired glow area. No texture needed, it renders entirely from UV coordinates.

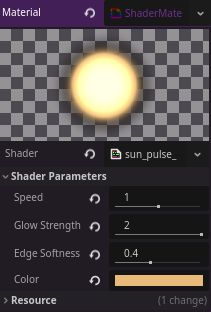

Uniforms:
- Speed – how fast the pulse breathes
- Glow Strength – overall brightness of the glow
- Edge Softness – how gradually the glow fades at the outer edge
- Color – tint color of the glow
Shader Code
shader_type canvas_item;
uniform float speed : hint_range(0.0, 2.0) = 0.3;
uniform float glow_strength : hint_range(0.0, 2.0) = 0.8;
uniform float edge_softness : hint_range(0.0, 1.0) = 0.15;
uniform vec4 color : source_color = vec4(0.98, 0.92, 0.79, 1.0);
void fragment() {
vec2 uv = UV - vec2(0.5);
float dist = length(uv);
float fade = smoothstep(0.8, 0.2, dist);
float edge = smoothstep(0.5, 0.5 - edge_softness, dist);
float pulse = 0.85 + 0.15 * sin(TIME * speed * 6.0);
float final = fade * edge * glow_strength * pulse;
COLOR = vec4(color.rgb * final, final);
}Community Discussion
