Made with Godot 4.5
Bloody hell… I shoved everything into one 😭

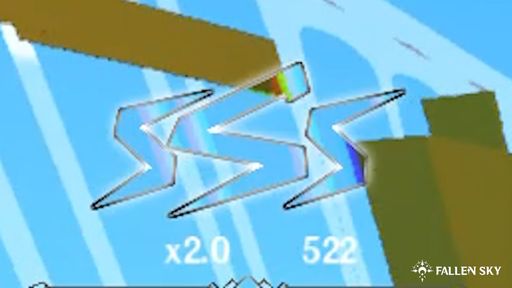

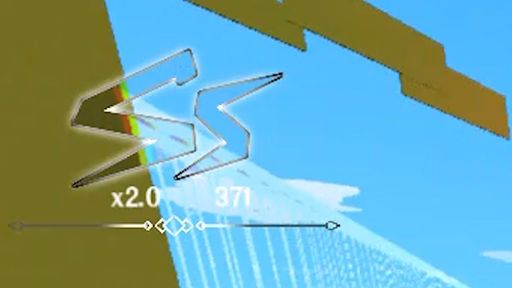

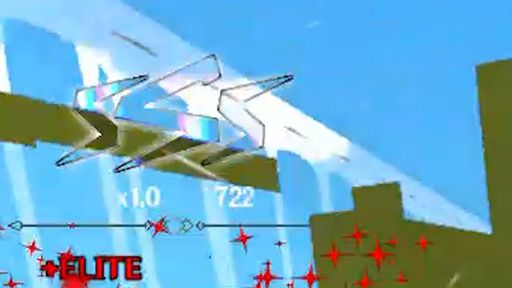

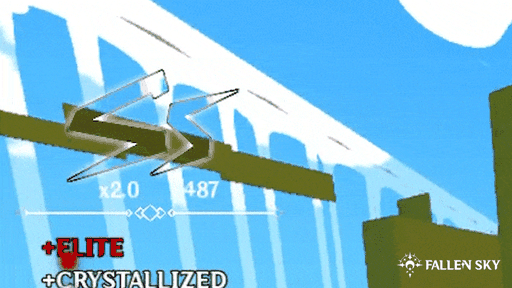

Btw, this shader can give a TextureRect outline, glow and even turn them into transparent with screen space chromatic effect (OPTIONAL)
It also simulates the frosted glass surface to make the node more visible

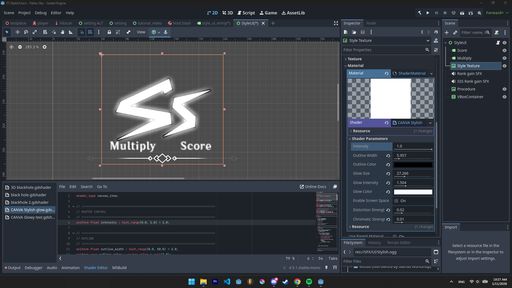

For easy control over the effect, I have a “intensity” uniform, so you don’t have to deal with so many lines of code just to adjust this shader
shader_type canvas_item;
// ============================================================================
// MASTER CONTROL
// ============================================================================
uniform float intensity : hint_range(0.0, 1.0) = 1.0;
// ============================================================================
// OUTLINE
// ============================================================================
uniform float outline_width : hint_range(0.0, 50.0) = 2.0;
uniform vec4 outline_color : source_color = vec4(1.0);
// ============================================================================
// GLOW
// ============================================================================
uniform float glow_size : hint_range(0.0, 100.0) = 10.0;
uniform float glow_intensity : hint_range(0.0, 5.0) = 1.0;
uniform vec4 glow_color : source_color = vec4(0.5, 0.8, 1.0, 1.0);
// ============================================================================
// SCREEN-SPACE CHROMATIC DISTORTION (OPTIONAL)
// ============================================================================
uniform bool enable_screen_space = false;
uniform float distortion_strength : hint_range(0.0, 0.1) = 0.0;
uniform float chromatic_strength : hint_range(0.0, 0.05) = 0.0;
uniform sampler2D screen_texture : hint_screen_texture, repeat_disable, filter_linear;
// ============================================================================
// FRAGMENT
// ============================================================================
void fragment() {
vec2 pixel = TEXTURE_PIXEL_SIZE;
vec4 base = texture(TEXTURE, UV);
float alpha = base.a;
vec4 color = base;
// Skip heavy work when intensity is zero
bool active = intensity > 0.0;
// ------------------------------------------------------------------------
// OUTLINE
// ------------------------------------------------------------------------
float outline = 0.0;
if (active && outline_width > 0.0 && alpha < 1.0) {
int radius = int(ceil(outline_width));
float max_alpha = 0.0;
for (int x = -radius; x <= radius; x++) {
for (int y = -radius; y <= radius; y++) {
if (x == 0 && y == 0) continue;
float dist = length(vec2(float(x), float(y))
);
if (dist > outline_width) continue;
vec2 offset = vec2(float(x), float(y)) * pixel;
max_alpha = max(
max_alpha,
texture(TEXTURE, UV + offset).a
);
}
}
outline = max_alpha * (1.0 - alpha);
}
// ------------------------------------------------------------------------
// GLOW
// ------------------------------------------------------------------------
float glow = 0.0;
if (active && glow_size > 0.0 && alpha < 1.0) {
int radius = int(ceil(glow_size));
float weight_sum = 0.0;
for (int x = -radius; x <= radius; x++) {
for (int y = -radius; y <= radius; y++) {
float dist = length(vec2(float(x), float(y)));
if (dist > glow_size || dist <= outline_width) continue;
vec2 offset = vec2(float(x), float(y)) * pixel;
float a = texture(TEXTURE, UV + offset).a;
float weight = exp(
- (dist * dist) / (glow_size * glow_size * 0.5)
);
glow += a * weight;
weight_sum += weight;
}
}
if (weight_sum > 0.0) {
glow = (glow / weight_sum) * glow_intensity * (1.0 - alpha);
}
}
// ------------------------------------------------------------------------
// SCREEN-SPACE CHROMATIC DISTORTION
// ------------------------------------------------------------------------
vec4 screen_color = vec4(0.0);
if (active && enable_screen_space && distortion_strength > 0.0 && alpha > 0.0) {
vec2 center = vec2(0.5);
vec2 to_center = SCREEN_UV - center;
float dist = length(to_center);
vec2 distortion = to_center * distortion_strength * dist;
vec2 uv_r = SCREEN_UV - distortion - to_center * chromatic_strength;
vec2 uv_g = SCREEN_UV - distortion;
vec2 uv_b = SCREEN_UV - distortion + to_center * chromatic_strength;
screen_color = vec4(
texture(screen_texture, uv_r).r,
texture(screen_texture, uv_g).g,
texture(screen_texture, uv_b).b,
1.0
);
}
// ------------------------------------------------------------------------
// COMPOSITION
// ------------------------------------------------------------------------
// Screen-space blend
if (active && enable_screen_space && distortion_strength > 0.0 && alpha > 0.0) {
color.rgb = mix(
color.rgb,
screen_color.rgb,
alpha * intensity
);
}
// Outline blend
if (outline > 0.0) {
float amt = outline * intensity * outline_color.a;
color.rgb = mix(color.rgb, outline_color.rgb, amt);
color.a = max(color.a, amt);
}
// Glow blend
if (glow > 0.0) {
float amt = glow * intensity * glow_color.a;
color.rgb = mix(color.rgb, glow_color.rgb, amt);
color.a = max(color.a, amt);
}
COLOR = color;
}
